Dynatex, electronic and solar energy

The Dynalight Lantern

The Dynalight has been fabricated since 1985 and been regularly updated to improve its reliability. For professional usage, it is recommended to add the metal guard which makes it more resistant.	Fluorescent tube	9 W
	Light level	530 lumen @ 9W
	Tube life time	5000 hours (nominal)
	Nominal voltage	12 Vdc
	Autonomy	7 à 14 hours (2 light levels)
	Battery	Sealed 7.2 Ah
	Regulators	Overcharge and deep discharge protection
	Charge voltage	15.5 Vdc
	Battery cycles	approx. 250 (nominal)
	Dimensions: Height Side	410mm 175mm
	Weight without battery	0.9kg
	Weight with battery	3.3kg
	Metal guard	Optional
	Heavy duty handle with plastic grip	Optional

12/24Vdc Fluorescents lamps

Model	Power	Dimensions / usage	CHF / 12V	CHF / 24 V

BL8	8 W	335 x 56 x 32 mm	65.00	75.00
BL14	14 W	670 x 110 x 70 mm	85.00	95.00
PL5	5 W	200 x 61 x 35 mm	70.00	80.00
PL7	7 W	200 x 61 x 35 mm	70.00	80.00
PL9	9 W	305 x 61 x 35 mm	75.00	85.00
PL11	11 W	305 x 61 x 35 mm	75.00	85.00
PL5-E	5 W	176 x 123 x 110 mm / outside use	90.00	95.00
PL7-E	7 W	563 x 56 x 32 mm / outside use	90.00	95.00
PL9-E	9 W	295 x 100 x 76 mm / outside use	95.00	105.00
PL11-E	11 W	295 x 100 x 76 mm / outside use	95.00	105.00
PLC10-S100	10 W	cable 80 cm (suspension, disposable tube)	75.00	80.00
PLC10-E27	10 W	spcket E27 (disposable tube)	65.00	75.00
PLC13-S100	13 W	cable 80 cm (suspension, disposable tube)	75.00	80.00
PLC13-E27	13 W	spcket E27 (disposable tube)	65.00	75.00
N1209-E27	9 W	spcket E27 (fixed tube) / long 13.5 cm	39.00
N1211-E27	11 W	spcket E27 (fixed tube) / long 14.5 cm	42.00
N1216-E27	16 W	spcket E27 /fixed tube) / long 14.7 cm	56.00

Notes:
- prices in swiss francs, TVA included, FOB Morges.
- BL et PL models are in white peinted metal with a transparent diffusor, switch included
- PL-E models are suited for outside use without switch
- PLC suspended models have to be mounted in a standard shade with 39 mm diameter fixation
- N models look like AC compact fluo lamps with E27 socket

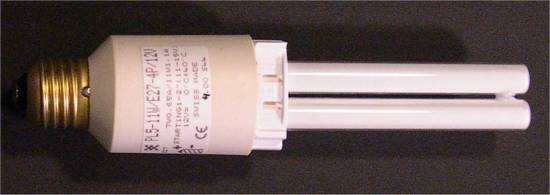

PLC E27
